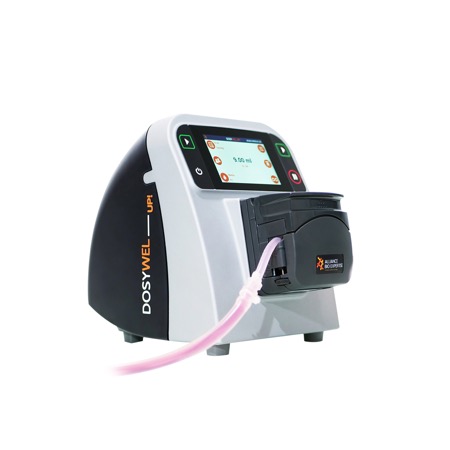

DOSYWEL UP® New Generation Peristaltic Pump, ABE

The DOSYWEL UP® (Alliance Bio Expertise) is a versatile peristaltic pump featuring multiple distribution modes, including Dosing (with defined volume), Multidose (with intervals), and Continuous distribution. It is equipped with an intuitive touchscreen operating system dedicated to microbiologists for reactive access to programs. The unit is compact and light, weighing only 3.1 kg, making it easy to lift for cleaning and optimizing bench space. It supports high-precision distribution with an accuracy of up to 1 second for 9 ml (98% accuracy using 3.2 mm tubing) and offers automatic traceability via a ticket printer or USB key.

Advantages

• Multi-modes: Supports Dosing, Multidose (with footpedal or hand dispenser), and Continuous distribution (Start/Stop).
• Fast & Accurate: Up to 1 second for 9ml with 98% accuracy using 3.2mm tubing. Maximum flow rate of 1.8 L/min.
• Compact & Light: Lightweight (3.1kg) and small footprint to optimize bench space and facilitate easy cleaning.
• Calibration: Set up a calibration at the beginning of a cycle or after a defined number of doses to ensure perfect distribution precision.
• User Friendly: Dedicated touchscreen for microbiologists and ergonomic user interface.
• Upgradeable: "Plug and Play" capability allows the DOSYWEL UP to be plugged into the POLYWEL UP to scale up production.
• Traceability: Standard features include ticket printer and USB key data management.

Instructions for use

The DOSYWEL UP® is used for the automated distribution of media or diluents into containers such as Petri dishes or tubes. Preparation: Choose the appropriate internal tube diameter (1.6 mm to 8 mm). Connect the tubing set (3.2 mm tubing with dispensing nozzle provided as standard). Operation: Select the desired mode (Dosing, Multidose, or Continuous) via the touchscreen. Set the Adjustable volume (1 to 9999.9 ml) and Adjustable speed (5 - 100% / 10 to 450 rpm). For semi-automatic distribution, utilize a footswitch or hand dispenser. Calibration: Perform calibration at the start of the cycle or after a selected number of doses. The pump can rotate both clockwise and anticlockwise. After operation, the smooth, light body allows for quick repositioning and cleaning.

Technical specifications
