The Orbisphere 6110 is a high-precision analyzer designed for the accurate measurement of total oxygen (O₂) and carbon dioxide (CO₂) levels in sealed beverage containers such as bottles and cans. Utilizing advanced optical sensing technology, it allows for non-invasive testing without compromising the integrity of the package. This makes it ideal for quality control in beverage production, ensuring product consistency and regulatory compliance.
On order

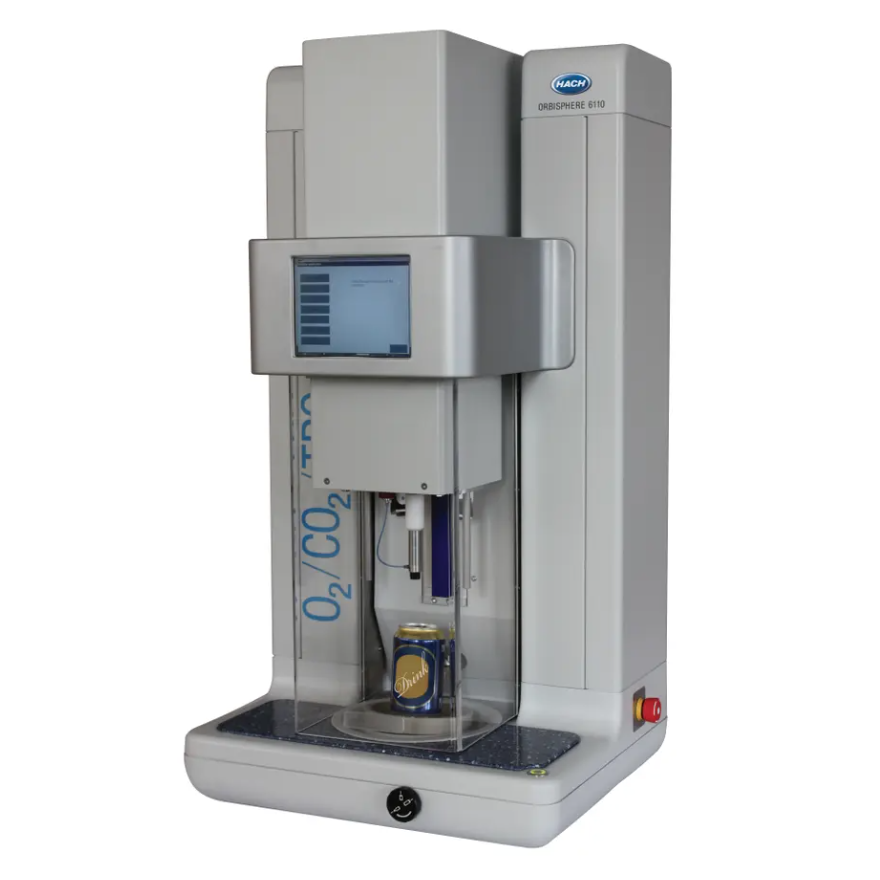

6110 Orbisphere Total O₂/CO₂ Package Analyzer & Installation Kit
6110
Orbisphere
Ensure your beverage quality meets the highest standards with the Orbisphere 6110 a compact, intelligent analyzer built for modern production environments. Designed to measure total oxygen and carbon dioxide directly from sealed bottles and cans, this device delivers laboratory-grade precision in a portable, easy-to-use system.
Unlike traditional methods that may alter or damage the package, the Orbisphere 6110 uses a non-destructive sampling technique to provide fast, accurate readings, helping you protect flavor, shelf life, and brand reputation. Whether you're producing beer, soda, sparkling water, or any other carbonated beverage, this analyzer gives you full control over gas levels at every stage of production.
Key Features & Benefits:
-
Non-invasive, non-destructive testing: Preserves the integrity of the beverage package, allowing for repeat testing or archival.
-
High measurement precision:
-
Oxygen measurement range: 0-1000 ppb (with ppb-level accuracy)
-
CO₂ measurement range: 0–10 volumes or more
-
-
Rapid analysis: Typical measurement cycle completed in under 2 minutes.
-
User-friendly interface: Integrated touchscreen display with intuitive menu navigation, suitable for both lab technicians and production line operators.
-
Data traceability & compliance: Built-in memory with secure data logging, audit trails, and export functionality via USB or Ethernet. Fully compliant with international quality and beverage analysis standards (e.g., ASBC, EBC, MEBAK).
-
Compact and portable: Designed for bench-top use or mobile operation across various points of the production line.
-
Installation Kit included: Provides all necessary hardware and accessories for immediate deployment, including piercing station, sample holders, tubing, and calibration standards.
Technical Specifications – Orbisphere 6110 Total O₂/CO₂ Package Analyzer
| Parameter | Specification |
|---|---|
| Measured Gases | Total Oxygen (O₂), Total Carbon Dioxide (CO₂) |
| Oxygen Measurement Range | 0 – 1000 ppb (parts per billion) |
| Oxygen Accuracy | ±1 ppb or ±2% of reading (whichever is greater) |
| Oxygen Sensor Type | Optical fluorescence (luminescence-based) |
| CO₂ Measurement Range | 0 – 10 volumes (can be extended depending on configuration) |
| CO₂ Accuracy | ±0.05 volumes or ±2% of reading |
| CO₂ Sensor Type | Infrared (IR) absorption |
| Measurement Method | Non-destructive, through piercing station; headspace and dissolved gas analysis |
| Sample Type | Sealed beverage containers (glass bottles, PET bottles, aluminum cans, etc.) |
| Analysis Time | < 2 minutes per sample |
| Display | Integrated color touchscreen |
| Data Storage | Internal memory with data logging capability |
| Data Export | USB, Ethernet (CSV, XML formats supported) |
| Connectivity | USB, Ethernet (LAN), optional RS-232 |
| Compliance Standards | ASBC, EBC, MEBAK, and other beverage industry standards |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature Range | +5°C to +40°C (41°F to 104°F) |
| Relative Humidity | 0–90% RH (non-condensing) |
| Dimensions (H x W x D) | Approx. 250 x 300 x 400 mm (varies slightly by configuration) |
| Weight | Approx. 8–10 kg (with installation kit) |
| Installation Kit Includes | Piercing device, sample holders, tubing, calibration accessories, manuals |
| Brand | Orbisphere |
