Single-channel electrochemical oxygen controller for continuous dissolved oxygen measurement. Wall-mounted controller with industrial power supply and standard analog and digital outputs for process integration.
On order
410A/W1C00000 Orbisphere 410A Controller O₂ (EC), 1 Channel, Wall Mount, 100–240 VAC, 4–20 mA, RS485
410A/W1C00000
Orbisphere
Description

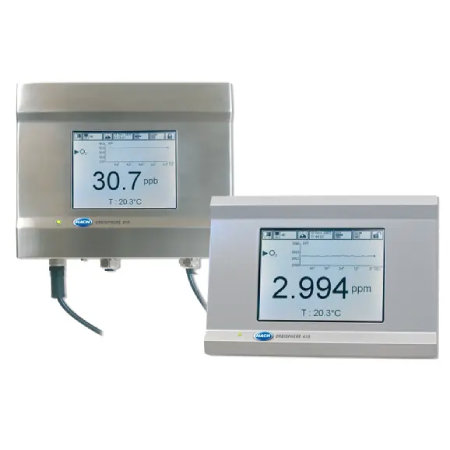

The Orbisphere 410A Controller O₂ (EC) is a single-channel oxygen controller designed to operate with Orbisphere electrochemical (EC) dissolved oxygen sensors. The controller supports continuous measurement and signal processing for oxygen monitoring applications. It features a wall-mount enclosure, universal 100–240 VAC power supply, and standard industrial outputs for integration into control systems. The 410A platform is intended for reliable operation in laboratory and industrial environments where stable dissolved oxygen control is required.
Advantages of 410A/W1C00000
- Single-channel controller dedicated to electrochemical oxygen sensors — 410A/W1C00000.
- Wall-mount design suitable for fixed installation in control rooms and laboratories.
- Universal power supply 100–240 VAC for global use.
- Standard 4–20 mA analog output for process control integration.
- RS485 digital communication for data transmission and system connectivity.
Operating instructions
Install the controller on a vertical wall surface according to the manufacturer’s installation guidelines. Connect compatible Orbisphere electrochemical oxygen sensors to the controller input. Ensure correct wiring of power supply, analog output, and RS485 communication lines. After installation, perform sensor configuration and calibration in accordance with the sensor and controller manuals. Operate the device within specified environmental conditions and perform periodic verification as recommended by the manufacturer.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article number | 410A/W1C00000 |
| Product type | Oxygen controller |
| Sensor technology | Electrochemical (EC) |
| Number of channels | 1 |
| Mounting type | Wall mount |
| Power supply | 100–240 VAC |
| Analog output | 4–20 mA |
| Digital communication | RS485 |
| Measured parameter | Dissolved oxygen |
| Manufacturer | Hach |
| Brand | Orbisphere |
